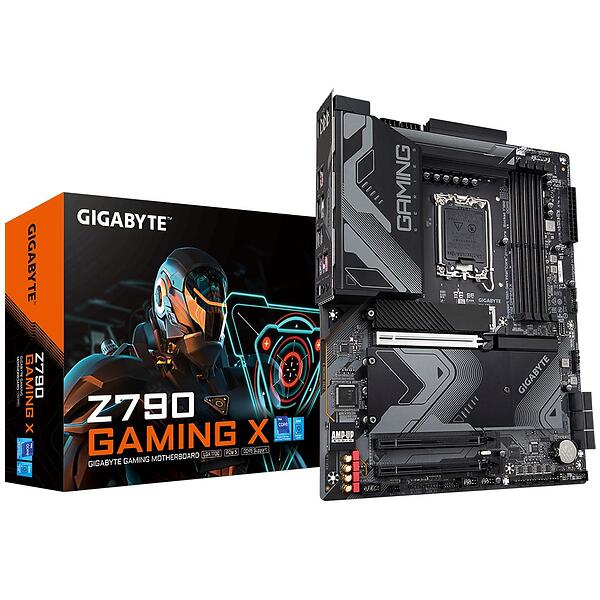

Gigabyte Z790 GAMING X
Form factor: ATX, Chipset: Intel [700 Series] Z790, Socket: Intel Socket 1700
Compare prices and shops
No active listings at the moment, but we update prices daily — check back soon.
Insights
Product information
Basic information
Product name
Gigabyte Z790 GAMING X
Brand
Gigabyte
General
Cooling
Passive
Form factor
ATX
Chipset
Intel [700 Series] Z790
Motherboard chipset
Intel Z790
Connectors
Number of HDMI outputs
1 st
Microphone input
1 st
Optical S/PDIF out
1 st
HDMI version
2.0
HDMI
Yes
Headphone output
Yes
USB
Yes
Number of DisplayPort outputs
1 st
S/PDIF
Yes
DVI
No
DisplayPort
Yes
DisplayPort version
1.2
USB 2.0
4 st
USB 3.1 Gen 1 (5Gbps)
3 st
PS/2
0 st
USB 3.2 Gen 2 (10Gbps)
2 st
Type of USB connector
USB (Type A), USB (Type C)
Coaxial S/PDIF out
0 st
USB 3.2 Gen 2x2 (20Gbps)
1 st
Connections - Internal
Number of SATA ports
6 st
SATA (Serial ATA)
Yes
Internal USB ports
Yes
M.2
4 st
U.2
0 st
Other internal connectors
Internal Thunderbolt (Incl. headers)
Chassis fan connectors
3 st
Max SATA speed
6 Gb/s
M.2 PCIe Gen4
Yes
Image properties
Maximum resolution
4096x2304
Graphics card
No
Support for integrated graphics in CPU
Yes
Dimensions
Width
244 mm
Depth
305 mm
Expansion slots
PCIe Express x16
3 st
PCI Express version
5.0
Features
Security
TPM
Communication
Number of Ethernet connections
1 st
Wireless network (Wi-Fi)
No
Max Ethernet speed
2.5 Gbit/s
Ethernet connection (RJ45)
Yes
Compatibility
RAID controller
Yes
Type of RAID
RAID 0, RAID 1, RAID 5, RAID 10
Audio features
Sound card
Yes
Memory
Memory slots
4 st
Maximum amount of memory
192 GB
Type of memory
DDR5
Memory speeds
DDR5-5800, DDR5-6200, DDR5-7000, DDR5-6800, DDR5-6400, DDR5-6000, DDR5-6600, DDR5-4800, DDR5-5200
Memory module
DIMM
Memory channels
Dual
Processor
Number of processor sockets
One
Socket
Intel Socket 1700
Integrated CPU
No
64-bit processor
Yes
Power supply
8-pin EPS Power Connector
Yes
