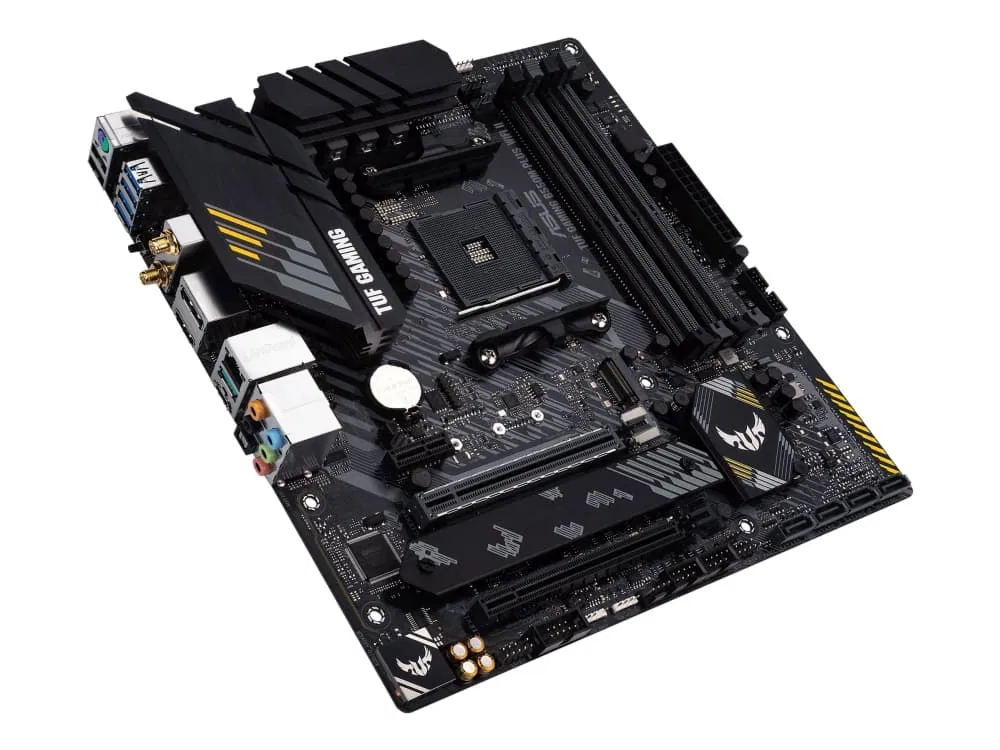

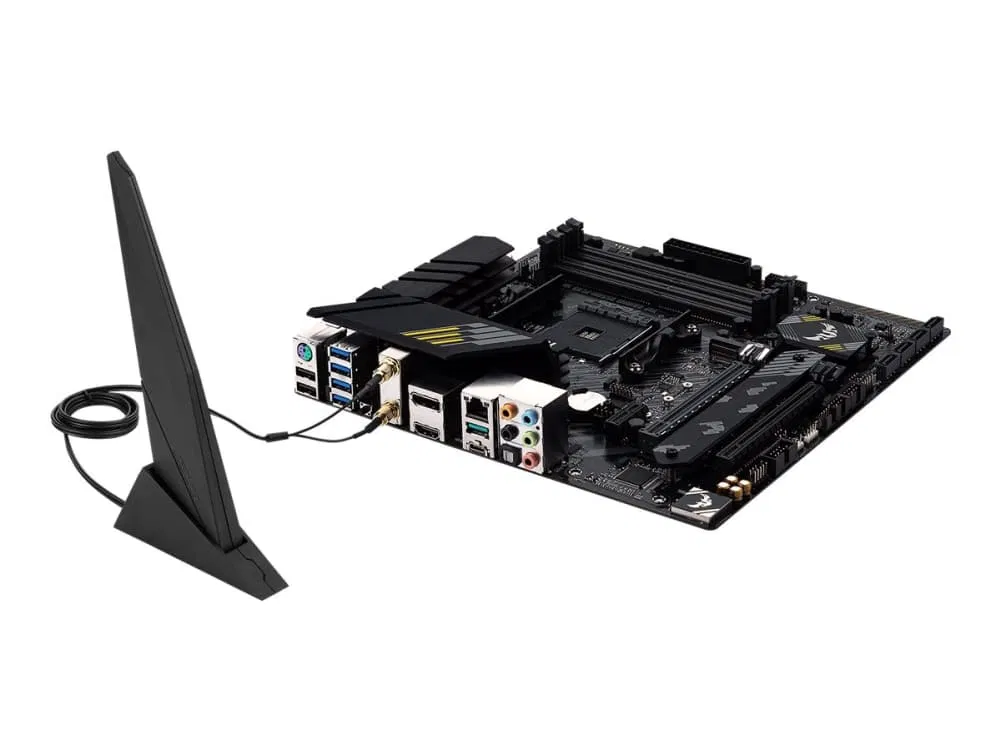

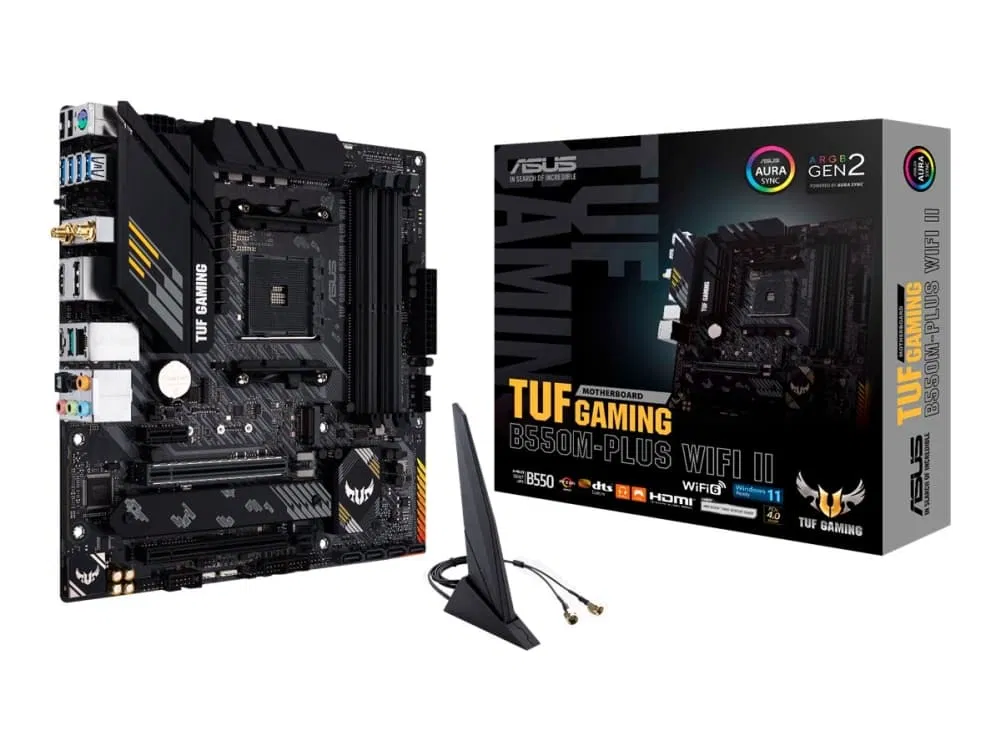

Asus TUF Gaming B550M-Plus WiFi II
Form factor: microATX, Chipset: AMD [500 Series] B550, Socket: AMD Socket AM4
Compare prices and shops
We have found the product in 2 shops, 2 of which are PriceSpy partners and have a direct link to the shop. How we display prices and shops.
Insights
Product information
The best price for Asus TUF Gaming B550M-Plus WiFi II right now is €239.99. PriceSpy compares deals and offers from 2 shops, online and local.
Basic information
Product name
Asus TUF Gaming B550M-Plus WiFi II
Brand
Asus
GTIN
04711081305705
General
Cooling
Passive
Form factor
microATX
Chipset
AMD [500 Series] B550
Motherboard chipset
AMD B550
Wake on LAN
Yes
Series
Asus TUF Gaming
Connectors
Number of HDMI outputs
1 st
Microphone input
1 st
Optical S/PDIF out
1 st
HDMI version
2.1
HDMI
Yes
Headphone output
Yes
USB
Yes
Number of DisplayPort outputs
1 st
S/PDIF
Yes
DVI
No
DisplayPort
Yes
DisplayPort version
1.2
USB 2.0
2 st
USB 3.1 Gen 1 (5Gbps)
4 st
PS/2
1 st
USB 3.2 Gen 2 (10Gbps)
2 st
Type of USB connector
USB (Type A), USB (Type C)
Coaxial S/PDIF out
0 st
USB 3.2 Gen 2x2 (20Gbps)
0 st
Connections - Internal
Number of SATA ports
4 st
SATA (Serial ATA)
Yes
Internal S/PDIF
0 st
Internal USB 2.0 ports
4 st
Internal USB 3.1 Gen 1 ports (5Gbps)
2 st
Internal USB ports
Yes
M.2
2 st
Internal USB 3.2 Gen 2 ports (10Gbps)
0 st
U.2
0 st
Chassis fan connectors
2 st
Internal USB 3.2 Gen 2x2 ports (20Gbps)
0 st
Max SATA speed
6 Gb/s
Image properties
Maximum resolution
3840x2160 (4K Ultra HD)
Graphics card
No
Support for integrated graphics in CPU
Yes
Dimensions
Product weight
0.845 kg
Width
244 mm
Depth
244 mm
Expansion slots
PCIe Express x16
2 st
PCIe Express x1
1 st
PCI slots
0 st
PCIe Express x4
0 st
PCIe Express x8
0 st
PCI Express version
4.0
Features
Security
TPM
Communication
Number of Ethernet connections
1 st
Wi-Fi Standard
Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), IEEE 802.11b, IEEE 802.11a
Bluetooth version
5.2
Bluetooth
Yes
Wireless network (Wi-Fi)
Yes
Wireless networking standard (IEEE 802.11)
802.11a, 802.11b, 802.11g, 802.11n (Wi-Fi 4), 802.11ac (Wi-Fi 5), 802.11ax (Wi-Fi 6)
Max Ethernet speed
2.5 Gbit/s
Ethernet connection (RJ45)
Yes
Compatibility
RAID controller
Yes
Multi-GPU technology
CrossFireX
Support for multiple graphics cards
No
Type of RAID
RAID 0, RAID 1, RAID 10
Audio features
Sound card
Yes
Sound card chip
Realtek ALC898
Memory
Memory slots
4 st
Maximum amount of memory
128 GB
ECC support
Yes
Type of memory
DDR4
Memory module
DIMM
Memory channels
Dual
Processor
Number of processor sockets
One
Socket
AMD Socket AM4
Integrated CPU
No
64-bit processor
Yes
Power supply
8-pin EPS Power Connector
Yes
