Product name

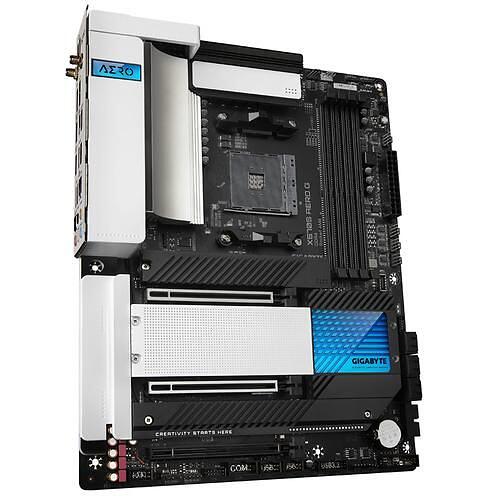

Gigabyte X570S Aero G

Brand

Gigabyte

Cooling

Passive

Form factor

ATX

Chipset

AMD [500 Series] X570

Motherboard chipset

AMD X570

Number of HDMI outputs

1 st

Microphone input

1 st

Optical S/PDIF out

1 st

HDMI version

2.1

HDMI

Yes

Headphone output

Yes

USB

Yes

Number of DisplayPort outputs

1 st

S/PDIF

Yes

DVI

No

DisplayPort

Yes

DisplayPort version

1.4

USB 2.0

2 st

USB 3.1 Gen 1 (5Gbps)

3 st

PS/2

0 st

USB 3.2 Gen 2 (10Gbps)

4 st

Type of USB connector

USB (Type A), USB (Type C)

Coaxial S/PDIF out

0 st

USB 3.2 Gen 2x2 (20Gbps)

1 st

Number of SATA ports

6 st

SATA (Serial ATA)

Yes

Internal S/PDIF

0 st

Internal USB 2.0 ports

4 st

Internal USB 3.1 Gen 1 ports (5Gbps)

4 st

Internal USB ports

Yes

M.2

4 st

Internal USB 3.2 Gen 2 ports (10Gbps)

1 st

U.2

0 st

Chassis fan connectors

4 st

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

6 Gb/s

Graphics card

No

Support for integrated graphics in CPU

Yes

Width

305 mm

Depth

244 mm

PCIe Express x16

3 st

PCIe Express x1

0 st

PCI slots

0 st

PCIe Express x4

0 st

PCIe Express x8

0 st

PCI Express version

4.0

Security

TPM

Number of Ethernet connections

1 st

Bluetooth version

5.2

Bluetooth

Yes

Wireless network (Wi-Fi)

Yes

Max Ethernet speed

2.5 Gbit/s

Ethernet connection (RJ45)

Yes

RAID controller

Yes

Multi-GPU technology

Quad CrossFireX, 2-Way CrossFireX

Support for multiple graphics cards

Yes

Type of RAID

RAID 0, RAID 1, RAID 10

Sound card

Yes

Sound card chip

Realtek ALC1220

Memory slots

4 st

Maximum amount of memory

128 GB

ECC support

Yes

Type of memory

DDR4

Memory module

DIMM

Number of processor sockets

One

Socket

AMD Socket AM4

Integrated CPU

No

64-bit processor

Yes
