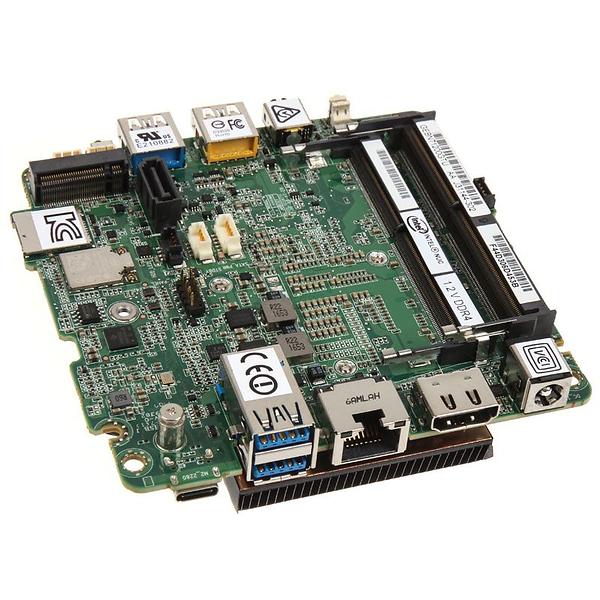

Intel NUC7I5BNB

Product name

Intel NUC7I5BNB

Brand

Intel

Cooling

Active

Form factor

UCFF/NUC

Chipset

No separate chipset

Number of HDMI outputs

1 st

HDMI version

2.0a

HDMI

Yes

Headphone output

Yes

USB

Yes

S/PDIF

No

DVI

No

DisplayPort

No

USB 2.0

0 st

Other connectors

Thunderbolt

PS/2

0 st

Type of USB connector

USB (Type A), USB (Type C)

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

2 st

SATA (Serial ATA)

Yes

Internal USB ports

Yes

M.2

1 st

Internal USB 3.2 Gen 2 ports (10Gbps)

0 st

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

6 Gb/s

Graphics card

No

Support for integrated graphics in CPU

Yes

Width

102 mm

Depth

102 mm

PCIe Express x16

0 st

PCIe Express x1

0 st

PCI slots

0 st

PCIe Express x4

0 st

PCIe Express x8

0 st

PCI Express version

3.0

Security

TPM

Number of Ethernet connections

1 st

Wi-Fi Standard

Wi-Fi 5 (802.11ac), IEEE 802.11b, Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n)

Bluetooth

Yes

Wireless network (Wi-Fi)

No

Ethernet connection (RJ45)

Yes

RAID controller

No

Support for multiple graphics cards

No

Sound card

Yes

Memory slots

2 st

Maximum amount of memory

32 GB

ECC support

No

Type of memory

DDR4

Memory speeds

DDR4-2133

Memory module

SO-DIMM

Compatible processors

Core i5

Socket

Intel Socket 1356

Processor speed

2.2 GHz

Processor core type

2 (Dual) Core

Integrated CPU

Yes

64-bit processor

Yes

Thermal Design Power (TDP)

15 W

Release year

2017
