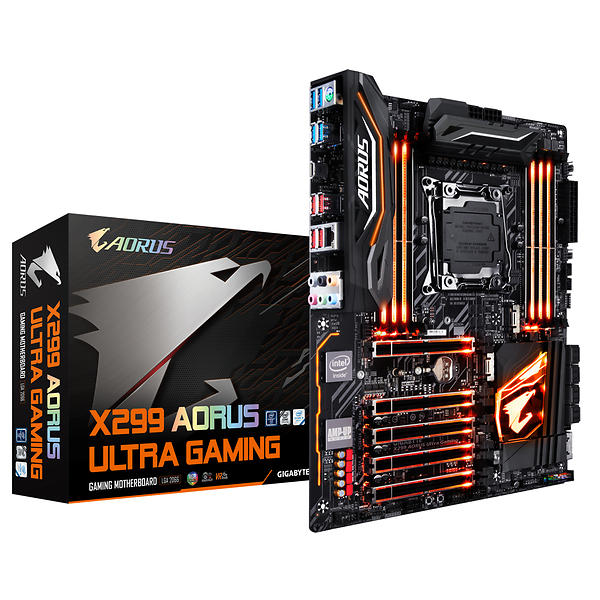

Gigabyte X299 Aorus Ultra Gaming

Product name

Gigabyte X299 Aorus Ultra Gaming

Brand

Gigabyte

Cooling

Passive

Form factor

ATX

Chipset

Intel [200 Series] X299

Microphone input

1 st

HDMI

No

Headphone output

Yes

USB

Yes

S/PDIF

Yes

DVI

No

DisplayPort

No

USB 2.0

0 st

USB 3.1 Gen 1 (5Gbps)

4 st

PS/2

1 st

USB 3.2 Gen 2 (10Gbps)

5 st

Type of USB connector

USB (Type A), USB (Type C)

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

8 st

SATA (Serial ATA)

Yes

Internal S/PDIF

1 st

Internal USB 2.0 ports

4 st

Internal USB 3.1 Gen 1 ports (5Gbps)

4 st

Internal USB ports

Yes

M.2

3 st

Internal USB 3.2 Gen 2 ports (10Gbps)

2 st

Other internal connectors

Internal Thunderbolt (Incl. headers)

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

6 Gb/s

Graphics card

No

Support for integrated graphics in CPU

No

Width

305 mm

Depth

244 mm

PCIe Express x16

5 st

PCIe Express x1

0 st

PCI slots

0 st

PCIe Express x4

0 st

PCIe Express x8

0 st

PCI Express version

3.0

Features

Built-in LED lighting

Wireless network (Wi-Fi)

No

Ethernet connection (RJ45)

Yes

RAID controller

Yes

Multi-GPU technology

2-Way CrossFireX, Quad SLI, Quad CrossFireX, 3-Way CrossFireX, 2-Way SLI, 3-Way SLI

Support for multiple graphics cards

Yes

Type of RAID

RAID 0, RAID 1, RAID 5, RAID 10

Sound card

Yes

Sound card chip

Realtek ALC1220

Memory slots

8 st

Maximum amount of memory

128 GB

ECC support

No

Type of memory

DDR4

Memory speeds

DDR4-2400, DDR4-2133

Memory module

DIMM

Number of processor sockets

One

Compatible processors

Core i5 X-series, Core i9 X-series, Xeon, Core i9, Core i7 X-series

Socket

Intel Socket 2066

Integrated CPU

No

64-bit processor

Yes

Release year

2017
