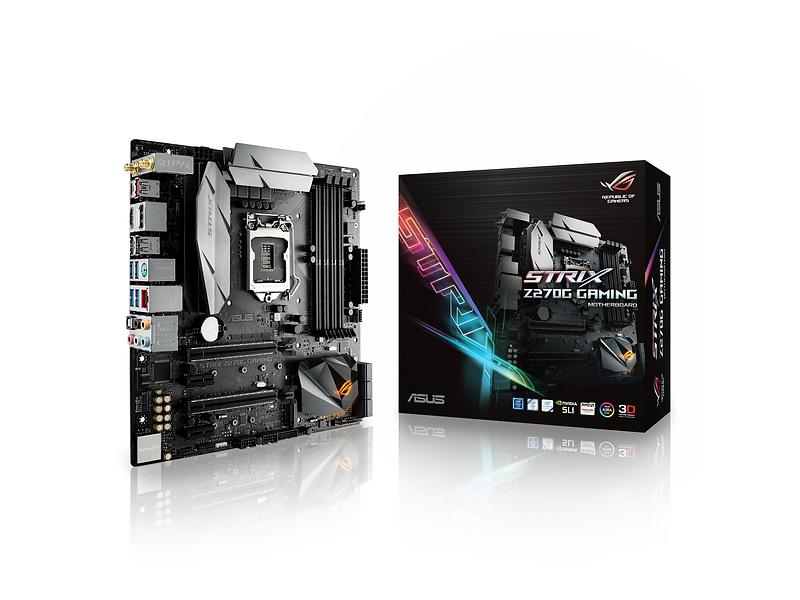

Asus ROG Strix Z270G Gaming
Form factor: microATX, Chipset: Intel [200 Series] Z270, Socket: Intel Socket 1151Read more
No active listings at the moment, but we update prices daily — check back soon.
Product information
Basic information
Product name
Asus ROG Strix Z270G Gaming
Brand
Asus
General
Cooling
Passive
Form factor
microATX
Chipset
Intel [200 Series] Z270
Connectors
Number of HDMI outputs
1 st
Microphone input
1 st
Optical S/PDIF out
1 st
HDMI version
1.4b
HDMI
Yes
Headphone output
Yes
USB
Yes
Number of DisplayPort outputs
1 st
S/PDIF
Yes
DVI
No
Number of DVI outputs
1 st
DisplayPort
Yes
DisplayPort version
1.2
USB 2.0
2 st
USB 3.1 Gen 1 (5Gbps)
4 st
PS/2
1 st
USB 3.2 Gen 2 (10Gbps)
2 st
Type of USB connector
USB (Type A), USB (Type C)
Coaxial S/PDIF out
0 st
USB 3.2 Gen 2x2 (20Gbps)
0 st
Connections - Internal
Number of SATA ports
6 st
SATA (Serial ATA)
Yes
Internal S/PDIF
0 st
Internal USB 2.0 ports
4 st
Internal USB 3.1 Gen 1 ports (5Gbps)
2 st
Internal USB ports
Yes
M.2
2 st
Internal USB 3.2 Gen 2 ports (10Gbps)
0 st
U.2
0 st
Chassis fan connectors
2 st
Internal USB 3.2 Gen 2x2 ports (20Gbps)
0 st
Max SATA speed
6 Gb/s
Image properties
Graphics card
No
Support for integrated graphics in CPU
Yes
Dimensions
Width
244 mm
Depth
244 mm
Expansion slots
PCIe Express x16
2 st
PCIe Express x1
2 st
PCI slots
0 st
PCIe Express x4
0 st
PCIe Express x8
0 st
PCI Express version
3.0
Features
Features
Built-in LED lighting
Communication
Number of Ethernet connections
1 st
Wi-Fi Standard
Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), IEEE 802.11b, IEEE 802.11a, Wi-Fi 5 (802.11ac)
Bluetooth version
4.1
Bluetooth
Yes
Wireless network (Wi-Fi)
Yes
Wireless networking standard (IEEE 802.11)
802.11g, 802.11n (Wi-Fi 4), 802.11b, 802.11a, 802.11ac (Wi-Fi 5)
Max Ethernet speed
1 Gbit/s
Ethernet connection (RJ45)
Yes
Network chip
Intel I219-V
Compatibility
RAID controller
Yes
Multi-GPU technology
CrossFireX, SLI, 2-Way SLI, 2-Way CrossFireX
Support for multiple graphics cards
Yes
Type of RAID
RAID 0, RAID 1, RAID 5, RAID 10
Audio features
Sound card
Yes
Sound card chip
SupremeFX S1220A
Memory
Memory slots
4 st
Maximum amount of memory
64 GB
ECC support
No
Type of memory
DDR4
Memory speeds
DDR4-3333, DDR4-3200, DDR4-3733, DDR4-3000, DDR4-2400, DDR4-4000, DDR4-3600, DDR4-3300, DDR4-2666, DDR4-3400, DDR4-2800, DDR4-2133, DDR4-3866, DDR4-3466
Memory module
DIMM
Processor
Number of processor sockets
One
Compatible processors
Pentium, Core i5, Core i3, Celeron, Core i7
Socket
Intel Socket 1151
Integrated CPU
No
64-bit processor
Yes
Miscellaneous
Release year
2017
