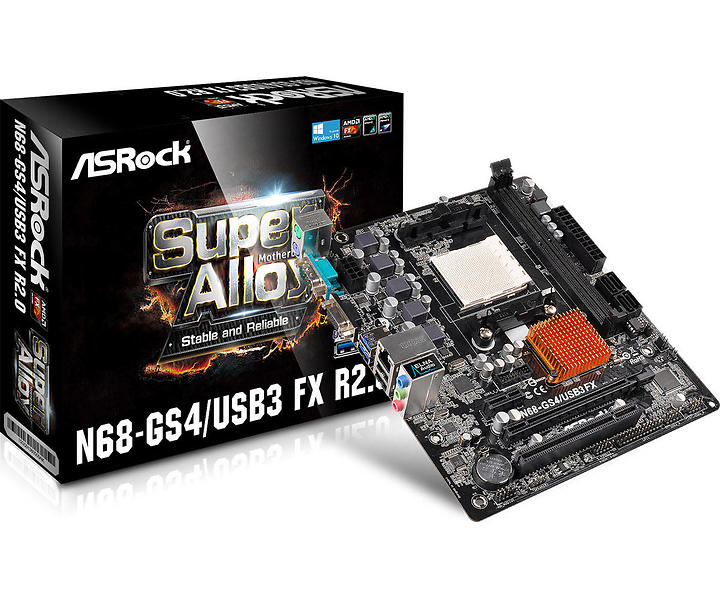

ASRock N68-GS4/USB3 FX R2.0

Product name

ASRock N68-GS4/USB3 FX R2.0

Brand

ASRock

Cooling

Passive

Form factor

microATX

Chipset

Nvidia nForce 630a

Microphone input

1 st

HDMI

No

Headphone output

Yes

USB

Yes

S/PDIF

No

DVI

No

DisplayPort

No

USB 2.0

2 st

USB 3.1 Gen 1 (5Gbps)

2 st

Other connectors

VGA

PS/2

2 st

USB 3.2 Gen 2 (10Gbps)

0 st

Type of USB connector

USB (Type A)

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

4 st

SATA (Serial ATA)

Yes

Internal S/PDIF

0 st

Internal USB 2.0 ports

4 st

Internal USB 3.1 Gen 1 ports (5Gbps)

2 st

Internal USB ports

Yes

M.2

0 st

Internal USB 3.2 Gen 2 ports (10Gbps)

0 st

U.2

0 st

Other internal connectors

Internal serial port

Chassis fan connectors

1 st

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

3 Gb/s

Graphics card

Yes

Graphics processor

GeForce 7025

Support for integrated graphics in CPU

No

Width

221 mm

Depth

183 mm

PCIe Express x16

1 st

PCIe Express x1

1 st

PCI slots

1 st

PCIe Express x4

0 st

PCIe Express x8

0 st

PCI Express version

2.0

Number of Ethernet connections

1 st

Bluetooth

No

Wireless network (Wi-Fi)

No

Max Ethernet speed

1 Gbit/s

Ethernet connection (RJ45)

Yes

Network chip

Realtek RTL8111E

RAID controller

Yes

Support for multiple graphics cards

No

Type of RAID

JBOD, RAID 5, RAID 0, RAID 10, RAID 1

Sound card

Yes

Sound card chip

Realtek ALC887

Memory slots

2 st

Maximum amount of memory

2 GB

ECC support

No

Type of memory

DDR3

Memory speeds

DDR3-1066, DDR3-1333, DDR3-1600, DDR3-1866

Memory module

DIMM

Number of processor sockets

One

Compatible processors

Phenom II X2, Sempron, Athlon II X4, Athlon II X2, Phenom II X4, Phenom II X3, Athlon II X3, Phenom II X6

Socket

AMD Socket AM3

Integrated CPU

No

64-bit processor

Yes

Release year

2016
