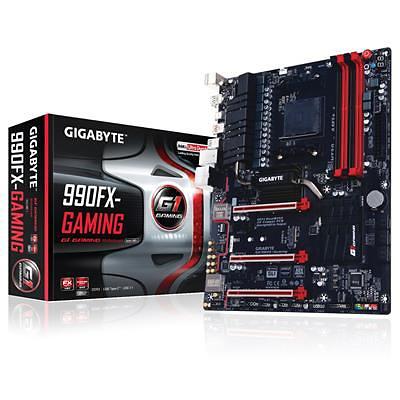

Gigabyte GA-990FX-Gaming
Form factor: ATX, Chipset: AMD [9 Series] 990FX, Socket: AMD Socket AM3+Read more
No active listings at the moment, but we update prices daily — check back soon.
Product information
Basic information
Product name
Gigabyte GA-990FX-Gaming
Brand
Gigabyte
General
Cooling
Passive
Form factor
ATX
Chipset
AMD [9 Series] 990FX
Motherboard chipset
AMD 990FX
Connectors
Microphone input
1 st
Optical S/PDIF out
1 st
HDMI
No
Headphone output
Yes
USB
Yes
S/PDIF
Yes
DVI
No
DisplayPort
No
USB 2.0
6 st
USB 3.1 Gen 1 (5Gbps)
3 st
Other connectors
Serial port
PS/2
1 st
USB 3.2 Gen 2 (10Gbps)
1 st
Type of USB connector
USB (Type A), USB (Type C)
Coaxial S/PDIF out
0 st
USB 3.2 Gen 2x2 (20Gbps)
0 st
Connections - Internal
Number of SATA ports
6 st
SATA (Serial ATA)
Yes
Internal S/PDIF
1 st
Internal USB 2.0 ports
6 st
Internal USB 3.1 Gen 1 ports (5Gbps)
2 st
Internal USB ports
Yes
M.2
1 st
Internal USB 3.2 Gen 2 ports (10Gbps)
0 st
U.2
0 st
Other internal connectors
Internal serial port
Chassis fan connectors
2 st
Internal USB 3.2 Gen 2x2 ports (20Gbps)
0 st
Max SATA speed
6 Gb/s
Image properties
Graphics card
No
Support for integrated graphics in CPU
No
Dimensions
Width
305 mm
Depth
244 mm
Expansion slots
PCIe Express x16
3 st
PCIe Express x1
3 st
PCI slots
0 st
PCIe Express x4
0 st
PCIe Express x8
0 st
PCI Express version
2.0
Features
Security
TPM
Communication
Number of Ethernet connections
1 st
Bluetooth
No
Wireless network (Wi-Fi)
No
Max Ethernet speed
1 Gbit/s
Ethernet connection (RJ45)
Yes
Network chip
Killer E2201
Compatibility
RAID controller
Yes
Multi-GPU technology
CrossFireX, SLI, 2-Way SLI, 2-Way CrossFireX
Support for multiple graphics cards
Yes
Type of RAID
JBOD, RAID 5, RAID 0, RAID 10, RAID 1
Audio features
Sound card
Yes
Sound card chip
Realtek ALC1150
Memory
Memory slots
4 st
Maximum amount of memory
32 GB
ECC support
No
Type of memory
DDR3
Memory speeds
DDR3-1600, DDR3-1333, DDR3-1066, DDR3-1866, DDR3-2000
Memory module
DIMM
Processor
Number of processor sockets
One
Compatible processors
Phenom II X2, Sempron, Athlon II X4, Athlon II X2, Phenom II X4, Phenom II X3, Athlon II X3, Phenom II X6
Socket
AMD Socket AM3+
Integrated CPU
No
64-bit processor
Yes
Miscellaneous
Release year
2015
