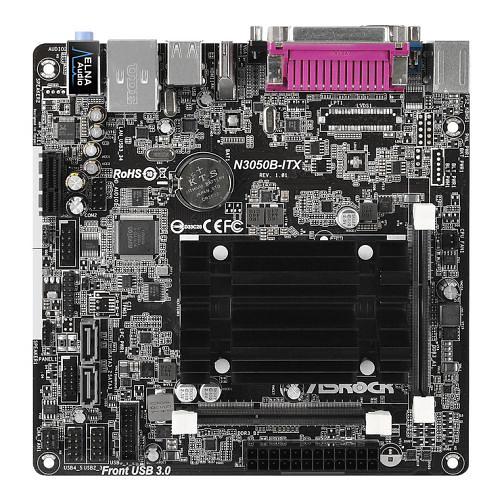

ASRock N3050B-ITX

Product name

ASRock N3050B-ITX

Brand

ASRock

Cooling

Passive

Form factor

Mini-ITX

Chipset

No separate chipset

Number of HDMI outputs

1 st

Microphone input

1 st

HDMI version

1.4

HDMI

Yes

Headphone output

Yes

USB

Yes

S/PDIF

No

DVI

No

DisplayPort

No

USB 2.0

2 st

USB 3.1 Gen 1 (5Gbps)

2 st

Other connectors

Firewire, VGA, Parallel port, Serial port

PS/2

2 st

USB 3.2 Gen 2 (10Gbps)

0 st

Type of USB connector

USB (Type A)

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

2 st

SATA (Serial ATA)

Yes

Internal S/PDIF

0 st

Internal USB 2.0 ports

4 st

Internal USB 3.1 Gen 1 ports (5Gbps)

2 st

Internal USB ports

Yes

M.2

0 st

Internal USB 3.2 Gen 2 ports (10Gbps)

0 st

U.2

0 st

Other internal connectors

Internal serial port

Chassis fan connectors

1 st

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

6 Gb/s

Graphics card

No

Support for integrated graphics in CPU

Yes

Width

170 mm

Depth

170 mm

PCIe Express x16

0 st

PCIe Express x1

1 st

PCI slots

0 st

PCIe Express x4

0 st

PCIe Express x8

0 st

PCI Express version

2.0

Security

TPM

Number of Ethernet connections

1 st

Bluetooth

No

Wireless network (Wi-Fi)

No

Max Ethernet speed

1 Gbit/s

Ethernet connection (RJ45)

Yes

Network chip

Realtek 8111GR

RAID controller

No

Support for multiple graphics cards

No

Sound card

Yes

Sound card chip

Realtek ALC887

Memory slots

2 st

Maximum amount of memory

16 GB

ECC support

No

Type of memory

DDR3

Memory speeds

DDR3-1066, DDR3-1600

Memory module

SO-DIMM

Compatible processors

Celeron

Processor speed

2.16 GHz

Processor type

Intel Celeron N3050

Processor core type

2 (Dual) Core

Integrated CPU

Yes

64-bit processor

Yes

Thermal Design Power (TDP)

6 W

Release year

2014
