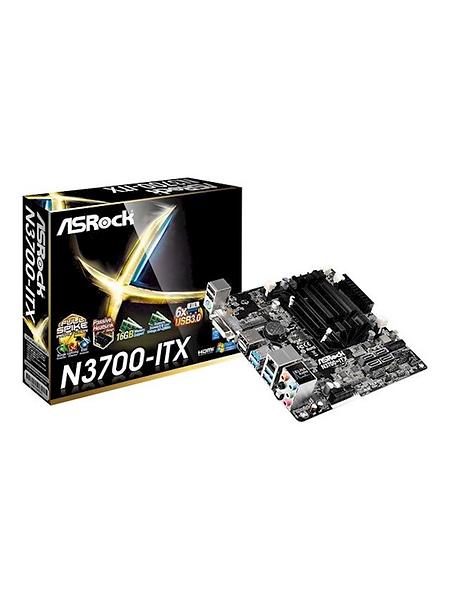

ASRock N3700-ITX

Product name

ASRock N3700-ITX

Brand

ASRock

Cooling

Passive

Form factor

Mini-ITX

Chipset

No separate chipset

Number of HDMI outputs

1 st

Microphone input

1 st

Optical S/PDIF out

1 st

HDMI

Yes

Headphone output

Yes

USB

Yes

Number of DisplayPort outputs

1 st

S/PDIF

Yes

DVI

Yes

Number of DVI outputs

1 st

DisplayPort

Yes

DisplayPort version

1.1a

USB 2.0

2 st

USB 3.1 Gen 1 (5Gbps)

4 st

PS/2

1 st

USB 3.2 Gen 2 (10Gbps)

0 st

Type of USB connector

USB (Type A)

Coaxial S/PDIF out

0 st

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

4 st

SATA (Serial ATA)

Yes

Internal S/PDIF

0 st

Internal USB 2.0 ports

2 st

Internal USB 3.1 Gen 1 ports (5Gbps)

4 st

Internal USB ports

Yes

Internal USB 3.2 Gen 2 ports (10Gbps)

0 st

Other internal connectors

Internal serial port

Chassis fan connectors

1 st

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

6 Gb/s

Graphics card

Yes

Graphics processor

Intel HD Graphics

Width

170 mm

Depth

170 mm

PCIe Express x16

0 st

PCIe Express x1

1 st

PCI slots

0 st

PCIe Express x4

0 st

PCIe Express x8

0 st

PCI Express version

2.0

Other expansion slots

PCI Express Mini

Security

TPM

Number of Ethernet connections

1 st

Bluetooth

No

Wireless network (Wi-Fi)

No

Ethernet connection (RJ45)

Yes

Network chip

Realtek 8111GR

RAID controller

No

Support for multiple graphics cards

No

Sound card

Yes

Sound card chip

Realtek ALC892

Memory slots

2 st

Maximum amount of memory

16 GB

ECC support

No

Type of memory

DDR3

Memory speeds

DDR3-1066, DDR3-1600

Memory module

SO-DIMM

Processor speed

2.4 GHz

Processor type

Intel Pentium N3700

Processor core type

4 (Quad) Core

Integrated CPU

Yes

64-bit processor

Yes

Thermal Design Power (TDP)

6 W

Release year

2015
