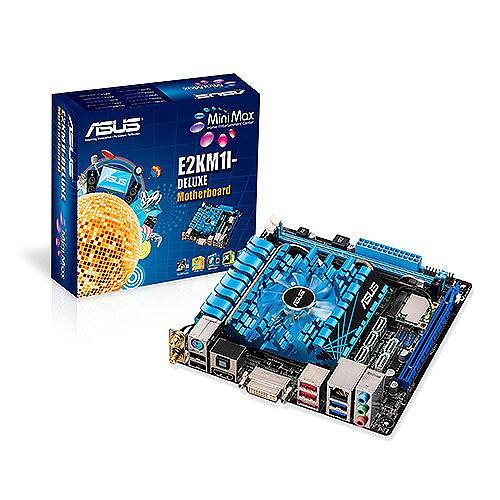

Asus E2KM1I-Deluxe

Product name

Asus E2KM1I-Deluxe

Brand

Asus

Cooling

Active

Form factor

Mini-ITX

Chipset

AMD [A Series] A50M

Number of HDMI outputs

1 st

Microphone input

1 st

Optical S/PDIF out

1 st

HDMI version

1.4a

HDMI

Yes

Headphone output

Yes

USB

Yes

S/PDIF

Yes

DVI

Yes

Number of DVI outputs

1 st

DisplayPort

No

USB 2.0

4 st

USB 3.1 Gen 1 (5Gbps)

2 st

Other connectors

eSATA

PS/2

1 st

USB 3.2 Gen 2 (10Gbps)

0 st

Coaxial S/PDIF out

0 st

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

5 st

SATA (Serial ATA)

Yes

Internal S/PDIF

1 st

Internal USB 2.0 ports

4 st

Internal USB 3.1 Gen 1 ports (5Gbps)

2 st

Internal USB ports

Yes

Internal USB 3.2 Gen 2 ports (10Gbps)

0 st

Chassis fan connectors

1 st

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

6 Gb/s

Graphics card

Yes

Graphics processor

Radeon HD 7340

Width

170 mm

Depth

170 mm

PCIe Express x16

1 st

PCIe Express x1

0 st

PCI slots

0 st

PCIe Express x4

0 st

PCIe Express x8

0 st

PCI Express version

2.0

Number of Ethernet connections

1 st

Bluetooth

Yes

Wireless network (Wi-Fi)

Yes

Wireless networking standard (IEEE 802.11)

802.11a, 802.11b, 802.11g, 802.11n (Wi-Fi 4)

Ethernet connection (RJ45)

Yes

Network chip

Realtek RTL8111E

RAID controller

No

Support for multiple graphics cards

No

Sound card

Yes

Sound card chip

Realtek ALC898

Memory slots

2 st

Maximum amount of memory

16 GB

ECC support

No

Type of memory

DDR3

Memory speeds

DDR3-1066, DDR3-1333

Memory module

DIMM

Processor speed

1.75 GHz

Processor type

AMD E-series E2-2000

Processor core type

2 (Dual) Core

Integrated CPU

Yes

64-bit processor

Yes

Thermal Design Power (TDP)

18 W

Release year

2013
