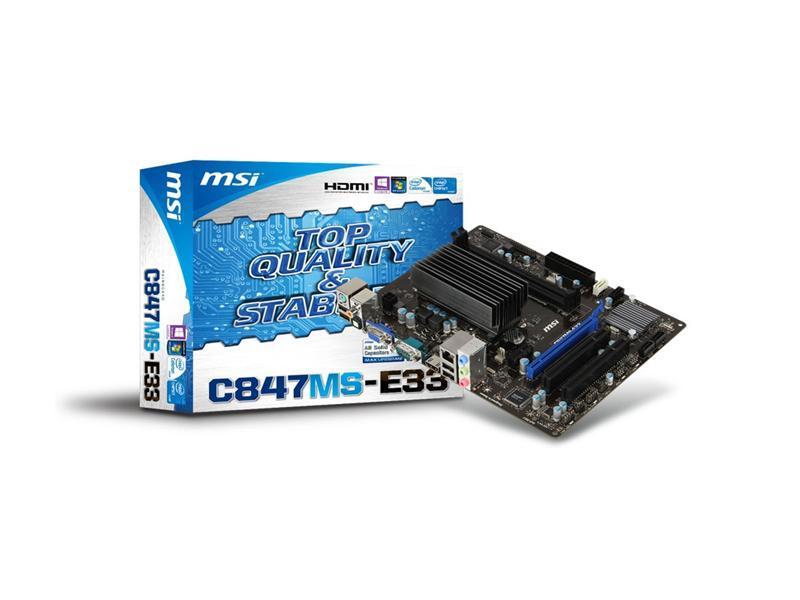

MSI C847MS-E33

Product name

MSI C847MS-E33

Brand

MSI

Cooling

Passive

Form factor

microATX

Chipset

Intel [7 Series] NM70

Number of HDMI outputs

1 st

Microphone input

1 st

Optical S/PDIF out

1 st

HDMI version

1.4

HDMI

Yes

Headphone output

Yes

USB

Yes

S/PDIF

Yes

DVI

No

DisplayPort

No

USB 2.0

4 st

USB 3.1 Gen 1 (5Gbps)

0 st

Other connectors

VGA, Serial port

PS/2

1 st

USB 3.2 Gen 2 (10Gbps)

0 st

Coaxial S/PDIF out

1 st

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

4 st

SATA (Serial ATA)

Yes

Internal S/PDIF

0 st

Internal USB 2.0 ports

4 st

Internal USB 3.1 Gen 1 ports (5Gbps)

0 st

Internal USB ports

Yes

M.2

0 st

Internal USB 3.2 Gen 2 ports (10Gbps)

0 st

Other internal connectors

Internal serial port, Internal parallel port

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

6 Gb/s

Graphics card

No

Width

244 mm

Depth

190 mm

PCIe Express x16

1 st

PCIe Express x1

1 st

PCI slots

2 st

PCIe Express x4

0 st

PCIe Express x8

0 st

PCI Express version

2.0

Security

TPM

Number of Ethernet connections

1 st

Bluetooth

No

Wireless network (Wi-Fi)

No

Ethernet connection (RJ45)

Yes

Network chip

Realtek RTL8111E

RAID controller

No

Support for multiple graphics cards

No

Sound card

Yes

Sound card chip

Realtek ALC887

Memory slots

2 st

Maximum amount of memory

16 GB

ECC support

No

Type of memory

DDR3

Memory speeds

DDR3-1066, DDR3-1333

Memory module

DIMM

Number of processor sockets

One

Compatible processors

Celeron

Processor speed

1.1 GHz

Processor type

Intel Celeron 847

Processor core type

2 (Dual) Core

Integrated CPU

Yes

64-bit processor

Yes

Thermal Design Power (TDP)

17 W

Release year

2012
