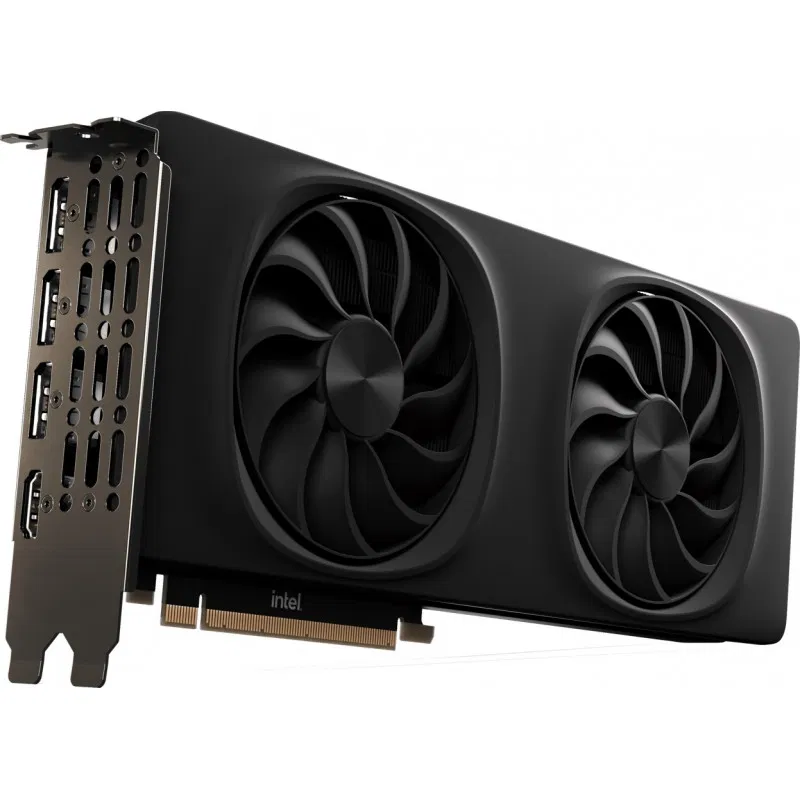

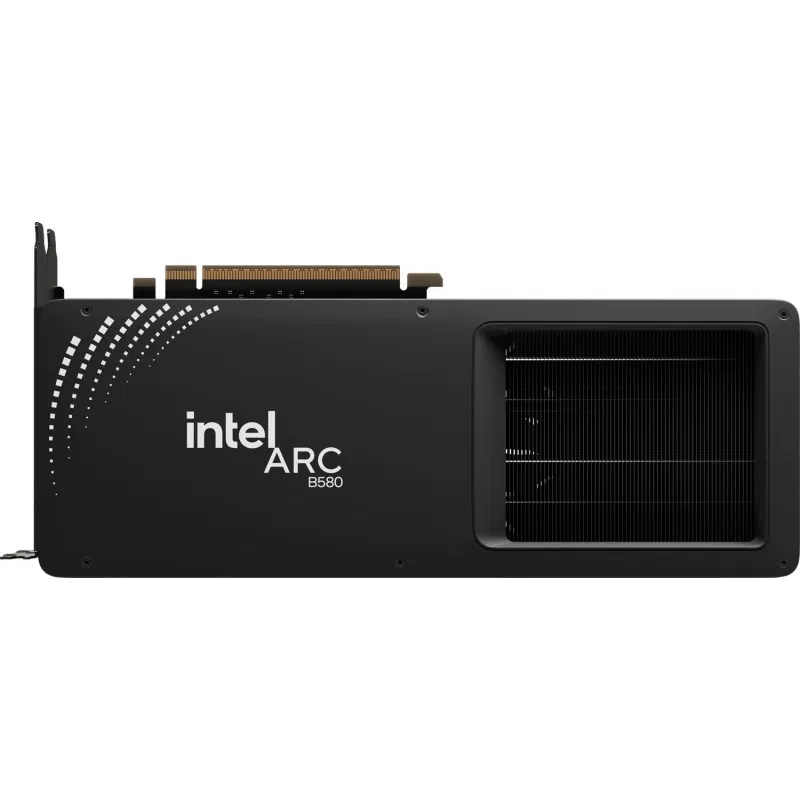

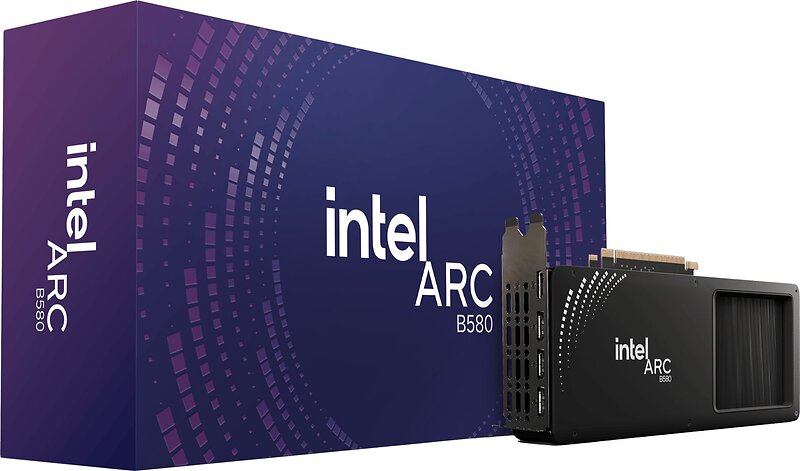

Intel Arc B580 Limited Ediiton 12GB
Memory type: GDDR6, Memory capacity: 12GB, Chipset Manufacturer: Intel ARC
Compare prices and shops
No active listings at the moment, but we update prices daily — check back soon.
Insights
Product information
Basic information
Product name
Intel Arc B580 Limited Ediiton 12GB
Brand
Intel
General
Low profile
No
Factory overclocked
No
Cooling
Air Cooling
PCI Express channels
x8
Unified Shading architecture
Yes
Aftermarket cooler (non reference cooler)
No
Number of fans
2 st
Semi-passive (passive at low efficiency)
No
Chipset Manufacturer
Intel ARC
GPU
Intel Arc B580
Optimised for
Gaming
Connectors
Number of HDMI outputs
1 st
VGA outputs
0 st
HDMI version
2.1
Dual Link
0 st
HDMI
Yes
Number of DisplayPort outputs
3 st
DVI
No
PCI Express version
PCI-E 4.0
Number of DVI outputs
0 st
Single Link
0 st
DisplayPort
Yes
DisplayPort version
2.1
Type of HDMI connector
Standard (Type A)
Type of DisplayPort connector
Standard
Image properties
Maximum resolution
7680x4320 (8K Ultra HD)
Number of supported monitors
4 st
Design
Colour
Black
Dimensions
Product weight
0.779 kg
Length
272 mm
Number of slots
2 st
Features
Features
VR ready, Backplate, AI Acceleration, Ray Tracing
Compatibility
HDCP
Yes
DirectX
12 Ultimate
OpenGL
4.6
Operating system
Windows 10, Windows 11
Support for multiple graphics cards
No
Vulkan
1.3
Xe-cores
20
OpenCL
3.0
Memory
Memory type
GDDR6
Memory speed (Effective frequency)
19000 MHz
Memory interface
192
Memory bandwidth
456 GB/s
Memory acceleration
No
Memory capacity
12GB
Memory Data Rate
19 Gbit/s
Processor
Processor speed
2670 MHz
Boost mode
Yes
Processor speed (Boost)
2670 MHz
Power supply
Supplementary power connector
1x8-pin
Required Power Supply
600 W
