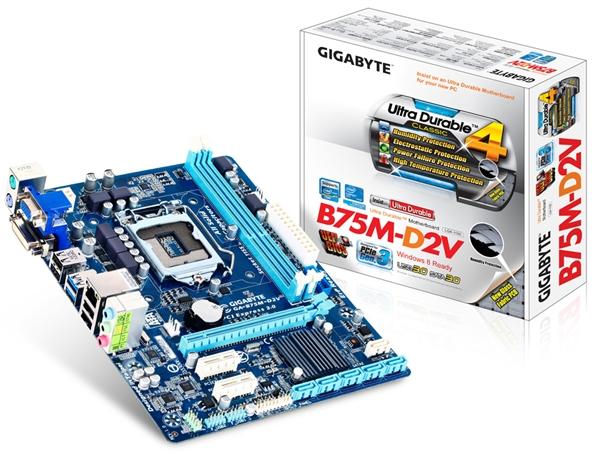

Gigabyte GA-B75M-D2V
Form factor: microATX, Chipset: Intel [7 Series] B75, Socket: Intel Socket 1155Read more
No active listings at the moment, but we update prices daily — check back soon.
Product information
Basic information
Product name
Gigabyte GA-B75M-D2V
Brand
Gigabyte
General
Cooling
Passive
Form factor
microATX
Chipset
Intel [7 Series] B75
Connectors
Microphone input
1 st
HDMI
No
Headphone output
Yes
USB
Yes
S/PDIF
No
DVI
Yes
Number of DVI outputs
1 st
DisplayPort
No
USB 2.0
4 st
USB 3.1 Gen 1 (5Gbps)
2 st
Other connectors
VGA
PS/2
2 st
USB 3.2 Gen 2 (10Gbps)
0 st
USB 3.2 Gen 2x2 (20Gbps)
0 st
Connections - Internal
Number of SATA ports
6 st
SATA (Serial ATA)
Yes
Internal S/PDIF
0 st
Internal USB 2.0 ports
4 st
Internal USB 3.1 Gen 1 ports (5Gbps)
2 st
Internal USB ports
Yes
Internal USB 3.2 Gen 2 ports (10Gbps)
0 st
U.2
0 st
Chassis fan connectors
1 st
Internal USB 3.2 Gen 2x2 ports (20Gbps)
0 st
Max SATA speed
3 Gb/s
Image properties
Graphics card
No
Support for integrated graphics in CPU
Yes
Dimensions
Width
226 mm
Depth
180 mm
Expansion slots
PCIe Express x16
1 st
PCIe Express x1
2 st
PCI slots
0 st
PCIe Express x4
0 st
PCIe Express x8
0 st
PCI Express version
3.0
Communication
Number of Ethernet connections
1 st
Ethernet connection (RJ45)
Yes
Audio features
Sound card
Yes
Sound card chip
Realtek ALC887
Memory
Memory slots
2 st
Maximum amount of memory
16 GB
Type of memory
DDR3
Memory speeds
DDR3-1066, DDR3-1333, DDR3-1600, DDR3-2200
Memory module
DIMM
Processor
Number of processor sockets
One
Compatible processors
Pentium, Core i5, Core i3, Celeron, Core i7
Socket
Intel Socket 1155
Integrated CPU
No
64-bit processor
Yes
Miscellaneous
Release year
2012
