Product name

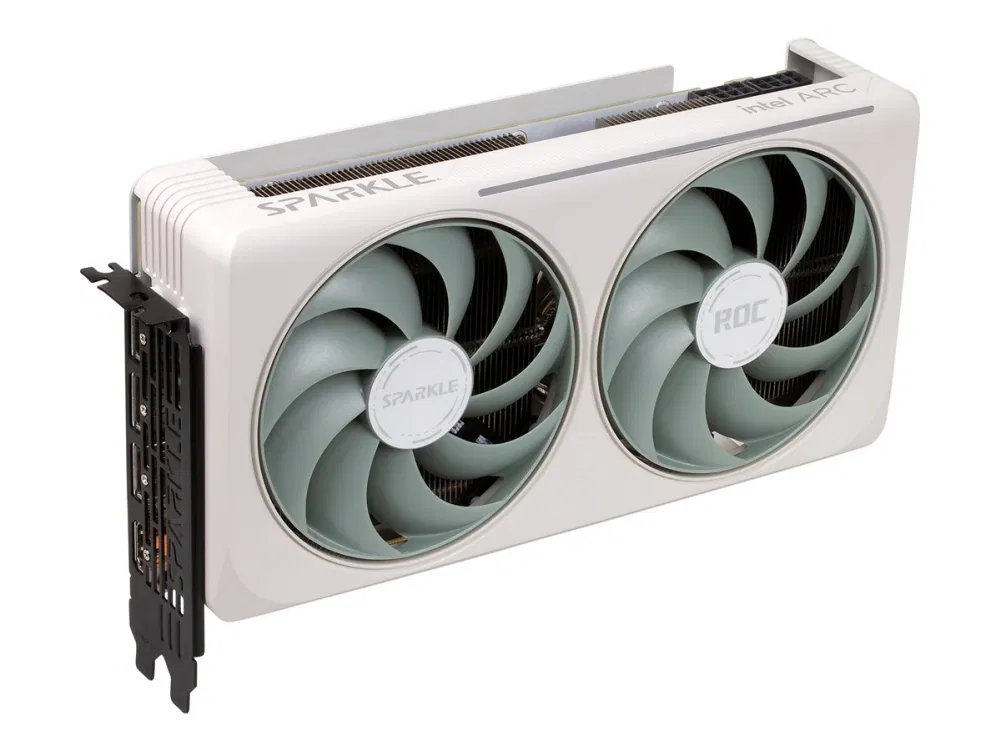

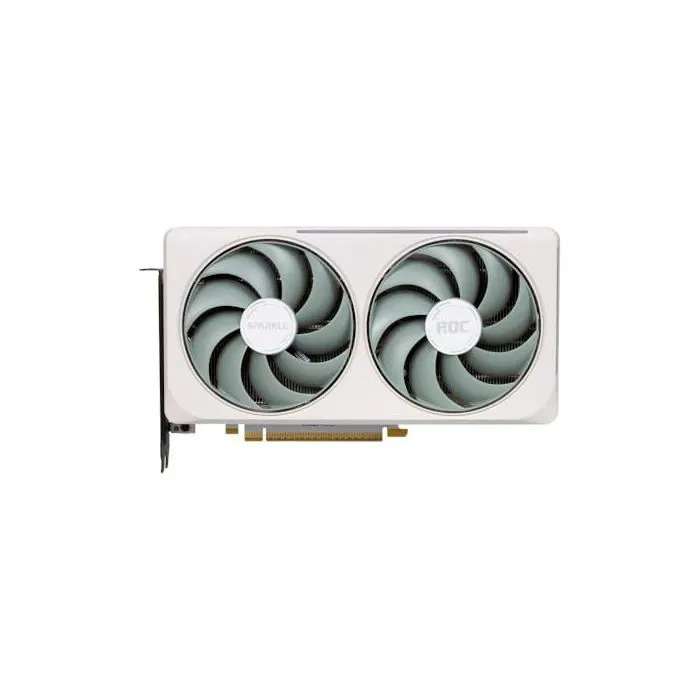

Sparkle Arc B580 ROC Luna OC Ultra 12GB

Brand

Sparkle

Unified Shaders

2560

Low profile

No

Factory overclocked

Yes

Cooling

Air Cooling

PCI Express channels

x16

Unified Shading architecture

Yes

Aftermarket cooler (non reference cooler)

Yes

Number of fans

2 st

Semi-passive (passive at low efficiency)

Yes

Chipset Manufacturer

Intel ARC

GPU

Intel Arc B580

Number of HDMI outputs

1 st

VGA outputs

0 st

HDMI version

2.1

Dual Link

0 st

HDMI

Yes

Number of DisplayPort outputs

3 st

DVI

No

PCI Express version

PCI-E 4.0

Number of DVI outputs

0 st

Single Link

0 st

DisplayPort

Yes

DisplayPort version

2.1

Type of HDMI connector

Standard (Type A)

Type of DisplayPort connector

Standard

Maximum resolution

7680x4320 (8K Ultra HD)

Number of supported monitors

4 st

Length

230 mm

Number of slots

2.2 st

Features

RGB Lighting, Backplate, AI Acceleration, Ray Tracing

HDCP

No

DirectX

12 Ultimate

OpenGL

4.6

Operating system

Windows 10, Windows 11

Support for multiple graphics cards

No

Vulkan

1.3

Xe-cores

20

Memory type

GDDR6

Memory speed (Effective frequency)

19000 MHz

Memory interface

192

Memory bandwidth

456 GB/s

Memory acceleration

No

Memory capacity

12GB

Memory Data Rate

19 Gbit/s

Processor speed

2670 MHz

Boost mode

Yes

Processor speed (Boost)

2800 MHz

Required Power Supply

600 W

Release year

2025
