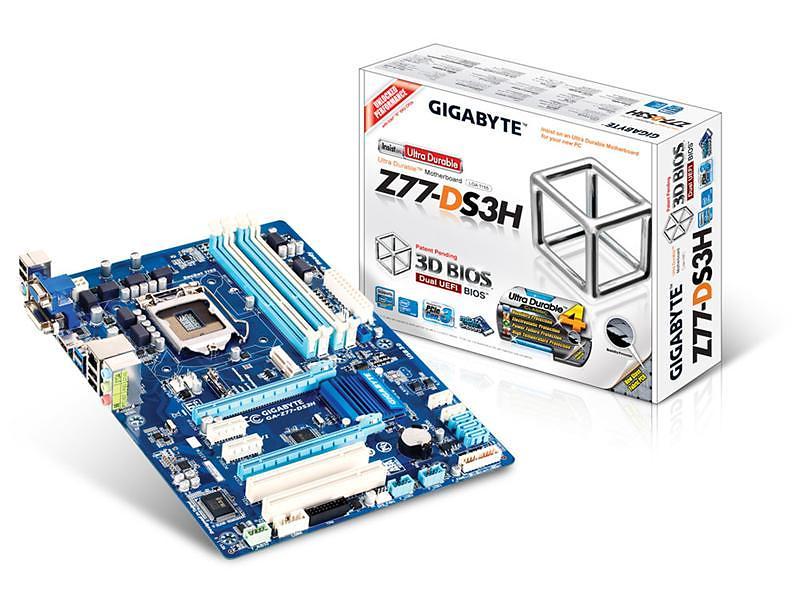

Gigabyte GA-Z77-DS3H

Product name

Gigabyte GA-Z77-DS3H

Brand

Gigabyte

Cooling

Passive

Form factor

ATX

Chipset

Intel [7 Series] Z77

Motherboard chipset

Intel Z77

Number of HDMI outputs

1 st

Microphone input

1 st

HDMI version

1.4a

HDMI

Yes

Headphone output

Yes

USB

Yes

S/PDIF

No

DVI

Yes

Number of DVI outputs

1 st

DisplayPort

No

USB 2.0

4 st

USB 3.1 Gen 1 (5Gbps)

2 st

Other connectors

Serial port, VGA

PS/2

1 st

USB 3.2 Gen 2 (10Gbps)

0 st

Type of USB connector

USB (Type A)

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

5 st

SATA (Serial ATA)

Yes

Internal S/PDIF

1 st

Internal USB 2.0 ports

4 st

Internal USB 3.1 Gen 1 ports (5Gbps)

2 st

Internal USB ports

Yes

M.2

0 st

Internal USB 3.2 Gen 2 ports (10Gbps)

0 st

U.2

0 st

Other internal connectors

Internal serial port, mSATA

Chassis fan connectors

3 st

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

3 Gb/s

Graphics card

No

Support for integrated graphics in CPU

Yes

Width

305 mm

Depth

215 mm

PCIe Express x16

2 st

PCIe Express x1

2 st

PCI slots

2 st

PCIe Express x4

0 st

PCI Express version

3.0

Security

TPM

Number of Ethernet connections

1 st

Bluetooth

No

Wireless network (Wi-Fi)

No

Ethernet connection (RJ45)

Yes

RAID controller

Yes

Multi-GPU technology

CrossFireX, Dual Graphics, 2-Way CrossFireX

Support for multiple graphics cards

Yes

Type of RAID

RAID 0, RAID 1, RAID 5, RAID 10

Sound card

Yes

Sound card chip

Realtek ALC887

Memory slots

4 st

Maximum amount of memory

32 GB

ECC support

No

Type of memory

DDR3

Memory speeds

DDR3-1066, DDR3-1333, DDR3-1600, DDR3-2400

Memory module

DIMM

Number of processor sockets

One

Compatible processors

Pentium, Core i5, Core i3, Celeron D, Celeron, Core i7

Socket

Intel Socket 1155

Integrated CPU

No

64-bit processor

Yes

Release year

2012
