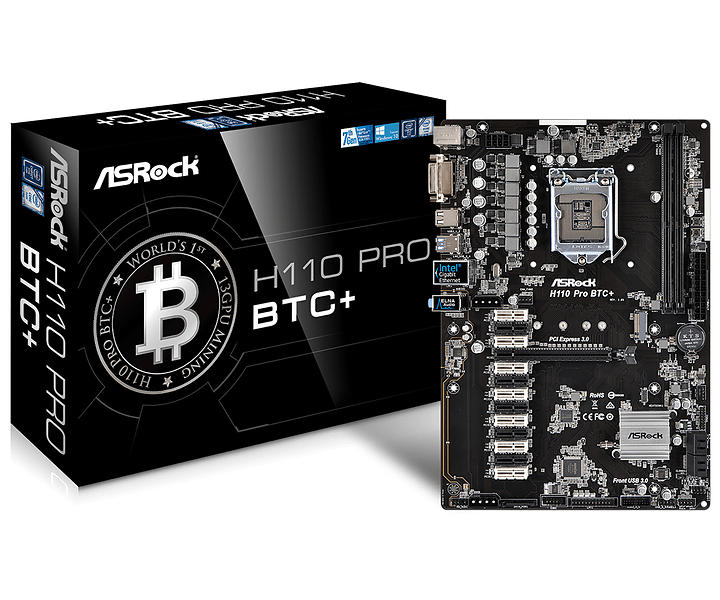

ASRock H110 Pro BTC+

Product name

ASRock H110 Pro BTC+

Brand

ASRock

Cooling

Passive

Form factor

ATX

Chipset

Intel [100 Series] H110

Microphone input

1 st

HDMI

No

Headphone output

Yes

USB

Yes

S/PDIF

No

DVI

Yes

Number of DVI outputs

1 st

DisplayPort

No

USB 2.0

4 st

USB 3.1 Gen 1 (5Gbps)

2 st

Other connectors

VGA

PS/2

2 st

USB 3.2 Gen 2 (10Gbps)

0 st

Type of USB connector

USB (Type A)

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

4 st

SATA (Serial ATA)

Yes

Internal S/PDIF

0 st

Internal USB 2.0 ports

4 st

Internal USB 3.1 Gen 1 ports (5Gbps)

2 st

Internal USB ports

Yes

M.2

1 st

Internal USB 3.2 Gen 2 ports (10Gbps)

0 st

U.2

0 st

Other internal connectors

Internal serial port, Internal parallel port

Chassis fan connectors

2 st

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

6 Gb/s

Graphics card

No

Support for integrated graphics in CPU

Yes

Width

305 mm

Depth

208 mm

PCIe Express x16

1 st

PCIe Express x1

12 st

PCI slots

0 st

PCIe Express x4

0 st

PCIe Express x8

0 st

PCI Express version

3.0

Security

TPM

Number of Ethernet connections

1 st

Bluetooth

No

Wireless network (Wi-Fi)

No

Max Ethernet speed

1 Gbit/s

Ethernet connection (RJ45)

Yes

Network chip

Intel I219-V

RAID controller

No

Support for multiple graphics cards

No

Sound card

Yes

Sound card chip

Realtek ALC887

Memory slots

2 st

Maximum amount of memory

32 GB

ECC support

No

Type of memory

DDR4

Memory speeds

DDR4-2400, DDR4-2133

Memory module

DIMM

Number of processor sockets

One

Compatible processors

Pentium, Core i5, Core i3, Celeron, Core i7

Socket

Intel Socket 1151

Integrated CPU

No

64-bit processor

Yes

Release year

2017
