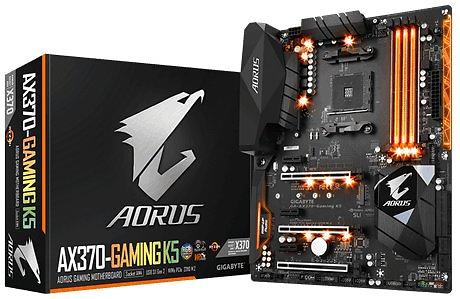

Gigabyte Aorus GA-AX370-Gaming K5
Form factor: ATX, Chipset: AMD [300 Series] X370, Socket: AMD Socket AM4Read more
No active listings at the moment, but we update prices daily — check back soon.
Product information
Basic information
Product name
Gigabyte Aorus GA-AX370-Gaming K5
Brand
Gigabyte
General
Cooling
Passive
Form factor
ATX
Chipset
AMD [300 Series] X370
Motherboard chipset
AMD X370
Connectors
Number of HDMI outputs
1 st
Microphone input
1 st
Optical S/PDIF out
1 st
HDMI version
1.4
HDMI
Yes
Headphone output
Yes
USB
Yes
S/PDIF
Yes
DVI
No
DisplayPort
No
USB 2.0
0 st
USB 3.1 Gen 1 (5Gbps)
6 st
Other connectors
VGA
PS/2
1 st
USB 3.2 Gen 2 (10Gbps)
4 st
Type of USB connector
USB (Type A), USB (Type C)
Coaxial S/PDIF out
0 st
USB 3.2 Gen 2x2 (20Gbps)
0 st
Connections - Internal
Number of SATA ports
8 st
SATA (Serial ATA)
Yes
Internal S/PDIF
1 st
Internal USB 2.0 ports
4 st
Internal USB 3.1 Gen 1 ports (5Gbps)
4 st
Internal USB ports
Yes
M.2
1 st
Internal USB 3.2 Gen 2 ports (10Gbps)
0 st
U.2
0 st
Other internal connectors
Internal serial port, SATA Express
Chassis fan connectors
2 st
Internal USB 3.2 Gen 2x2 ports (20Gbps)
0 st
Max SATA speed
6 Gb/s
Image properties
Graphics card
No
Support for integrated graphics in CPU
Yes
Dimensions
Width
305 mm
Depth
244 mm
Expansion slots
PCIe Express x16
3 st
PCIe Express x1
3 st
PCI slots
0 st
PCIe Express x4
0 st
PCIe Express x8
0 st
PCI Express version
3.0
Features
Features
Built-in LED lighting
Security
TPM
Communication
Number of Ethernet connections
1 st
Bluetooth
No
Wireless network (Wi-Fi)
No
Max Ethernet speed
1 Gbit/s
Ethernet connection (RJ45)
Yes
Network chip
Intel I211-AT
Compatibility
RAID controller
Yes
Multi-GPU technology
2-Way CrossFireX, Quad SLI, Quad CrossFireX, SLI, 2-Way SLI, CrossFireX
Support for multiple graphics cards
Yes
Type of RAID
RAID 0, RAID 1, RAID 10
Audio features
Sound card
Yes
Sound card chip
Realtek ALC1220
Memory
Memory slots
4 st
Maximum amount of memory
64 GB
ECC support
Yes
Type of memory
DDR4
Memory speeds
DDR4-3200, DDR4-2933, DDR4-2400, DDR4-2666, DDR4-2133
Memory module
DIMM
Maximum RAM frequency
3200
Processor
Number of processor sockets
One
Compatible processors
A-Series A12, Ryzen 3, A-Series A8, Athlon X4, A-Series A10, Ryzen 7, Ryzen 5, A-Series A6
Socket
AMD Socket AM4
Integrated CPU
No
64-bit processor
Yes
Miscellaneous
Release year
2017
