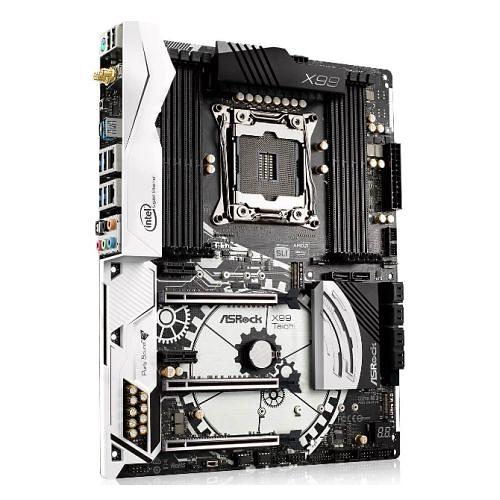

ASRock X99 Taichi
Form factor: ATX, Chipset: Intel [9 Series] X99, Socket: Intel Socket 2011-3Read more
No active listings at the moment, but we update prices daily — check back soon.
Product information
Basic information
Product name
ASRock X99 Taichi
Brand
ASRock
General
Cooling
Passive
Form factor
ATX
Chipset
Intel [9 Series] X99
Connectors
Microphone input
1 st
Optical S/PDIF out
1 st
HDMI
No
Headphone output
Yes
USB
Yes
S/PDIF
Yes
DVI
No
DisplayPort
No
USB 2.0
3 st
USB 3.1 Gen 1 (5Gbps)
3 st
PS/2
1 st
USB 3.2 Gen 2 (10Gbps)
2 st
Type of USB connector
USB (Type A), USB (Type C)
Coaxial S/PDIF out
0 st
USB 3.2 Gen 2x2 (20Gbps)
0 st
Connections - Internal
Number of SATA ports
10 st
SATA (Serial ATA)
Yes
Internal S/PDIF
0 st
Internal USB 2.0 ports
4 st
Internal USB 3.1 Gen 1 ports (5Gbps)
2 st
Internal USB ports
Yes
M.2
2 st
Internal USB 3.2 Gen 2 ports (10Gbps)
0 st
U.2
0 st
Other internal connectors
Internal serial port
Chassis fan connectors
3 st
Internal USB 3.2 Gen 2x2 ports (20Gbps)
0 st
Max SATA speed
6 Gb/s
Image properties
Graphics card
No
Support for integrated graphics in CPU
No
Dimensions
Width
305 mm
Depth
244 mm
Expansion slots
PCIe Express x16
3 st
PCIe Express x1
2 st
PCI slots
0 st
PCIe Express x4
0 st
PCIe Express x8
0 st
PCI Express version
3.0
Features
Security
TPM
Communication
Number of Ethernet connections
2 st
Wi-Fi Standard
Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), IEEE 802.11b, IEEE 802.11a, Wi-Fi 5 (802.11ac)
Bluetooth version
4.0
Bluetooth
Yes
Wireless network (Wi-Fi)
Yes
Wireless networking standard (IEEE 802.11)
802.11g, 802.11n (Wi-Fi 4), 802.11b, 802.11a, 802.11ac (Wi-Fi 5)
Max Ethernet speed
1 Gbit/s
Ethernet connection (RJ45)
Yes
Network chip
Intel I218-V
Compatibility
RAID controller
Yes
Multi-GPU technology
Quad SLI, 3-Way CrossFireX, SLI, 3-Way SLI, CrossFireX
Support for multiple graphics cards
Yes
Type of RAID
RAID 0, RAID 1, RAID 5, RAID 10
Audio features
Sound card
Yes
Sound card chip
Realtek ALC1150
Memory
Memory slots
8 st
Maximum amount of memory
128 GB
ECC support
Yes
Type of memory
DDR4
Memory speeds
DDR4-3200, DDR4-2933, DDR4-3000, DDR4-2400, DDR4-3100, DDR4-3300, DDR4-2666, DDR4-2800, DDR4-2133
Memory module
DIMM
Processor
Number of processor sockets
One
Compatible processors
Xeon, Core i7, Core i7 Extreme
Socket
Intel Socket 2011-3
Integrated CPU
No
64-bit processor
Yes
Miscellaneous
Release year
2016
