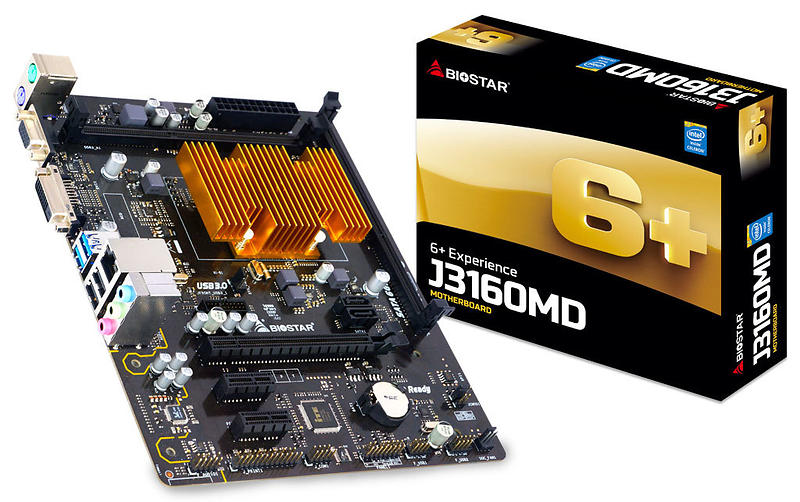

Biostar J3160MD

Product name

Biostar J3160MD

Brand

Biostar

Cooling

Passive

Form factor

microATX

Chipset

No separate chipset

Microphone input

1 st

HDMI

No

Headphone output

Yes

USB

Yes

S/PDIF

No

DVI

Yes

Number of DVI outputs

1 st

DisplayPort

No

USB 2.0

2 st

USB 3.1 Gen 1 (5Gbps)

2 st

Other connectors

VGA

PS/2

2 st

USB 3.2 Gen 2 (10Gbps)

0 st

Type of USB connector

USB (Type A)

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

2 st

SATA (Serial ATA)

Yes

Internal S/PDIF

0 st

Internal USB 2.0 ports

2 st

Internal USB 3.1 Gen 1 ports (5Gbps)

1 st

Internal USB ports

Yes

M.2

0 st

Internal USB 3.2 Gen 2 ports (10Gbps)

0 st

Other internal connectors

Internal serial port, Internal parallel port

Chassis fan connectors

2 st

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

6 Gb/s

Graphics card

Yes

Graphics processor

Intel HD Graphics

Width

226 mm

Depth

188 mm

PCIe Express x16

1 st

PCIe Express x1

2 st

PCI slots

0 st

PCIe Express x4

0 st

PCIe Express x8

0 st

PCI Express version

2.0

Number of Ethernet connections

1 st

Bluetooth

No

Wireless network (Wi-Fi)

No

Ethernet connection (RJ45)

Yes

Network chip

Realtek RTL8111H

RAID controller

No

Support for multiple graphics cards

No

Sound card

Yes

Sound card chip

Realtek ALC662

Memory slots

2 st

Maximum amount of memory

16 GB

ECC support

No

Type of memory

DDR3

Memory speeds

DDR3-1066, DDR3-1600

Memory module

DIMM

Compatible processors

Celeron

Processor speed

2.24 GHz

Processor type

Intel Celeron J3160

Processor core type

4 (Quad) Core

Integrated CPU

Yes

64-bit processor

Yes

Thermal Design Power (TDP)

6 W
