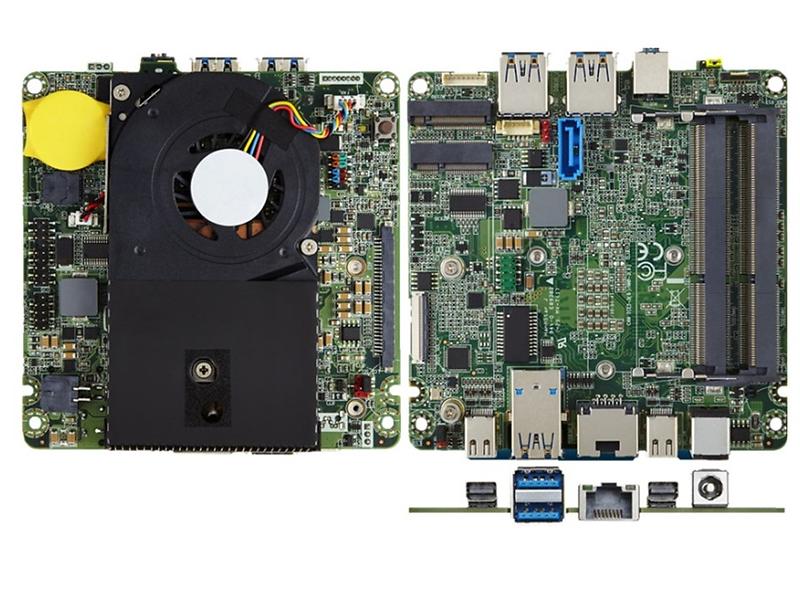

Intel NUC5i5MYBE

Product name

Intel NUC5i5MYBE

Brand

Intel

Cooling

Active

Form factor

UCFF/NUC

Chipset

No separate chipset

HDMI

No

USB

Yes

Number of DisplayPort outputs

2 st

DVI

No

DisplayPort

Yes

DisplayPort version

1.2

USB 2.0

0 st

USB 3.1 Gen 1 (5Gbps)

4 st

Other connectors

Firewire

PS/2

0 st

USB 3.2 Gen 2 (10Gbps)

0 st

Type of USB connector

USB (Type A)

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

1 st

SATA (Serial ATA)

Yes

Internal USB 2.0 ports

2 st

Internal USB 3.1 Gen 1 ports (5Gbps)

0 st

Internal USB ports

Yes

Internal USB 3.2 Gen 2 ports (10Gbps)

0 st

Other internal connectors

Internal serial port

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

6 Gb/s

Graphics card

Yes

Graphics processor

Intel HD Graphics 5500

Support for integrated graphics in CPU

Yes

Width

102 mm

Depth

102 mm

PCIe Express x16

0 st

PCIe Express x1

0 st

PCI slots

0 st

PCIe Express x4

1 st

PCIe Express x8

0 st

PCI Express version

2.0

Security

TPM

Number of Ethernet connections

1 st

Wireless network (Wi-Fi)

Yes

Max Ethernet speed

1 Gbit/s

Ethernet connection (RJ45)

Yes

RAID controller

Yes

Support for multiple graphics cards

No

Type of RAID

RAID 0, RAID 1

Sound card

Yes

Memory slots

2 st

Maximum amount of memory

16 GB

ECC support

No

Type of memory

DDR3

Memory speeds

DDR3-1333, DDR3-1600

Memory module

SO-DIMM

Compatible processors

Core i5

Processor speed

2.3 GHz

Processor type

Intel Core i5 [Gen 3] 3427U

Processor core type

2 (Dual) Core

Integrated CPU

Yes

64-bit processor

Yes

Thermal Design Power (TDP)

15 W

Release year

2015
