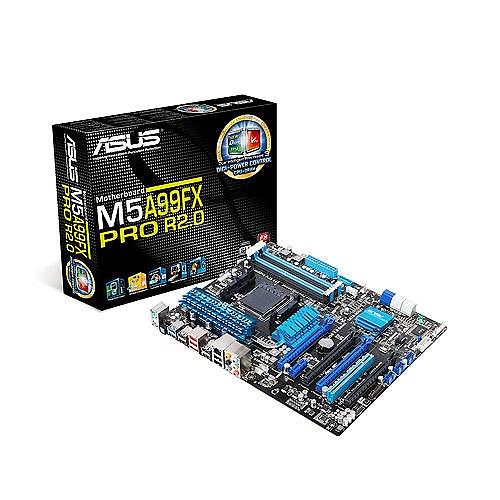

Asus M5A99FX Pro R2.0

Product name

Asus M5A99FX Pro R2.0

Brand

Asus

Cooling

Passive

Form factor

ATX

Chipset

AMD [9 Series] 990FX

Motherboard chipset

AMD 990FX

Microphone input

1 st

Optical S/PDIF out

1 st

HDMI

No

Headphone output

Yes

USB

Yes

S/PDIF

Yes

DVI

No

Number of DVI outputs

1 st

DisplayPort

No

USB 2.0

8 st

USB 3.1 Gen 1 (5Gbps)

2 st

Other connectors

eSATA, Firewire, Thunderbolt

PS/2

2 st

USB 3.2 Gen 2 (10Gbps)

0 st

Type of USB connector

USB (Type A)

Coaxial S/PDIF out

0 st

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

8 st

SATA (Serial ATA)

Yes

Internal S/PDIF

1 st

Internal USB 2.0 ports

6 st

Internal USB 3.1 Gen 1 ports (5Gbps)

2 st

Internal USB ports

Yes

M.2

0 st

Internal USB 3.2 Gen 2 ports (10Gbps)

0 st

U.2

0 st

Other internal connectors

Internal serial port

Chassis fan connectors

3 st

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

6 Gb/s

Graphics card

No

Support for integrated graphics in CPU

No

Width

305 mm

Depth

244 mm

PCIe Express x16

4 st

PCIe Express x1

1 st

PCI slots

1 st

PCIe Express x4

0 st

PCIe Express x8

0 st

PCI Express version

2.0

Security

TPM

Number of Ethernet connections

1 st

Bluetooth

No

Wireless network (Wi-Fi)

No

Max Ethernet speed

1 Gbit/s

Ethernet connection (RJ45)

Yes

Network chip

Realtek 8111F

RAID controller

Yes

Multi-GPU technology

CrossFireX, SLI, Quad SLI, 3-Way CrossFireX

Support for multiple graphics cards

Yes

Type of RAID

RAID 0, RAID 1, RAID 5, RAID 10

Sound card

Yes

Sound card chip

Realtek ALC892

Memory slots

4 st

Maximum amount of memory

32 GB

ECC support

Yes

Type of memory

DDR3

Memory speeds

DDR3-1600, DDR3-1333, DDR3-1066, DDR3-1866, DDR3-2133

Memory module

DIMM

Number of processor sockets

One

Compatible processors

Phenom II X2, Sempron, Athlon II X4, Athlon II X2, Phenom II X4, Phenom II X3, Athlon II X3, Phenom II X6

Socket

AMD Socket AM3+

Integrated CPU

No

64-bit processor

Yes

Release year

2012
