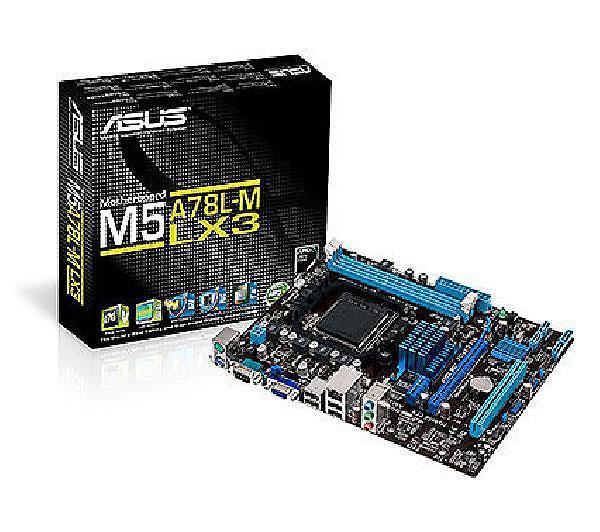

Asus M5A78L-M LX3

Product name

Asus M5A78L-M LX3

Brand

Asus

Cooling

Passive

Form factor

microATX

Chipset

AMD [7 Series] 760G

Motherboard chipset

AMD 760G

Number of HDMI outputs

0 st

Microphone input

1 st

Optical S/PDIF out

0 st

HDMI

No

Headphone output

Yes

USB

Yes

S/PDIF

No

DVI

No

DisplayPort

No

USB 2.0

4 st

USB 3.1 Gen 1 (5Gbps)

0 st

Other connectors

VGA, Serial port

PS/2

2 st

USB 3.2 Gen 2 (10Gbps)

0 st

Type of USB connector

USB (Type A)

USB 3.2 Gen 2x2 (20Gbps)

0 st

Number of SATA ports

4 st

SATA (Serial ATA)

Yes

Internal S/PDIF

0 st

Internal USB 2.0 ports

4 st

Internal USB 3.1 Gen 1 ports (5Gbps)

0 st

Internal USB ports

Yes

M.2

0 st

Internal USB 3.2 Gen 2 ports (10Gbps)

0 st

U.2

0 st

Chassis fan connectors

1 st

Internal USB 3.2 Gen 2x2 ports (20Gbps)

0 st

Max SATA speed

3 Gb/s

Graphics card

Yes

Graphics processor

Radeon HD 3000

Support for integrated graphics in CPU

No

Width

244 mm

Depth

188 mm

PCIe Express x16

1 st

PCIe Express x1

1 st

PCI slots

1 st

PCIe Express x4

0 st

PCIe Express x8

0 st

PCI Express version

2.0

Number of Ethernet connections

1 st

Bluetooth

No

Wireless network (Wi-Fi)

No

Max Ethernet speed

1 Gbit/s

Ethernet connection (RJ45)

Yes

Network chip

Qualcomm Atheros AR8171

RAID controller

Yes

Multi-GPU technology

Hybrid CrossFireX

Support for multiple graphics cards

Yes

Type of RAID

RAID 0, RAID 1, RAID 10, JBOD

Sound card

Yes

Sound card chip

Realtek ALC887

Memory slots

2 st

Maximum amount of memory

16 GB

ECC support

Yes

Type of memory

DDR3

Memory speeds

DDR3-1066, DDR3-1333, DDR3-1600, DDR3-1866

Memory module

DIMM

Number of processor sockets

One

Compatible processors

Phenom II X2, Sempron, Athlon II X4, Athlon II X2, Phenom II X4, Phenom II X3, Athlon X2, Athlon II X3, Phenom II X6

Socket

AMD Socket AM3+

Integrated CPU

No

64-bit processor

Yes

Release year

2012
